Working through enterprise applications has various challenges, among them, multi-threading stands out. Nowadays, all applications tend to use all capabilities of modern hardware, especially CPUs in our case. Performing several jobs simultaneously by multiple threads brings about more advantages for us like high processing speed, however, without having enough knowledge on this matter, our application outcomes may go toward deterioration.

Fighting for grabbing resources not only belongs to real-life environments but also is the truth on the wire. In such scenarios, we have a situation that must be addressed, otherwise, something undoubtedly happens which commonly called race condition. It means an undesirable situation that occurs when a device or system attempts to perform two or more operations in a time.

Our duty as a programmer is to establish certain policies in order to bring fairness and balance among resources and consumers. By doing this, the mess would be wrapped up.

Table of contents:

• Synchronization
• lock statement
  • Choosing the right synchronization object
  • Under the hood
• The Monitor statement
  • Lock on a Reference Type, Not a Value Type
  • Monitor Sample
  • Monitor static methods
• Conclusion
  • Next mission

Synchronization

Whenever two or more threads tend to reach out to a shared-resource at a time, the system needs a synchronization mechanism to ensure that only one thread has exclusive access to the resource. Synchronizing access to data is a safe way to prevent race conditions from happening along with the system. There are plenty of mechanisms to synchronize an application in .NET. This blog post goes over lock and Monitor statements.

lock statement

The lock is widely accepted due to its simplicity. However, that advantage has a downside: programmers use it without really considering what it does and how to use it efficiently. Knowing it and best practices bring you proper insight when coding in concurrent scenarios.

It ensures that only one thread can enter a critical section of codes. Other threads that try to be the owner of the lock would be suspended until the first thread releases the lock.

static object lockerObject = new object();
int counter = 0;

lock(lockerObject)
{
    counter++;
}

As you can see, the lock guarantees that only one thread could increment the value of the counter. The lockerObject is a synchronizing object that can be locked by only one thread at a time.

Choosing the right synchronization object

Although any object can be used as a synchronization object, there is one hard rule, "it must be a reference type". The synchronization object is typically a private and a static or an instance field. A private member helps to encapsulate the locking object. As a result, it can prevent deadlock, since unrelated code could choose the same object to lock on for different purposes.

Also, you can use this object as a synchronizing object. For example:

lock(this)
{
    ...
}

As mentioned, locking in this way has a serious issue that is not encapsulating the locking logic and can prone to deadlock.

Briefly, the most reliable way for choosing a synchronizing object is to consider a private object in the class by which you can have precise control over it.

Under the hood

The lock statement is translated to the following code in C# 3.0: (The code explained in the Monitor section.)

static object locker = new object();
Monitor.Enter(locker);
try
{
    ...
}
finally
{
    Monitor.Exit(locker);
}

There is a vulnerability in this code. If an exception is being thrown between Monitor.Enter() and try due to for example OutOfMemoryException or the thread is being aborted, also if lock is being taken, it is never released because the thread never gets into the try block and causes leaked lock.

This danger has been fixed in C# 4.0. the following overload is added to Monitor.Enter.

public static void Enter(object obj, ref bool lockTaken)

Eventually, from C# 4.0 onward the lock statement is translated to the following code. As you see, the vulnerability that we saw before has healed.

private static object locker = new object();
bool lockTaken = false;
try
{
    Monitor.Enter(locker, ref lockTaken);
    //Statements
}
finally
{
    if(lockTaken)
        Monitor.Exit(locker);
}

In short, the lock is shorthand for utilizing the Monitor statement. Let's take a closer look at it.

The Monitor statement

The Monitor is another way of synchronization in .NET with which a lock object has exclusive access to a particular block of code. It is a static class that provides several methods to operate on an object that controls access to the critical section. An object can grab the ownership of the Monitor by calling Monitor.Enter, and release it by Monitor.Exit. While a thread owns the lock for an object, no other thread can acquire that lock.

The Monitor never be released unless the owner of Monitor must pass to Exit. Therefore, if you pass an object to Exit which is not the owner of the Monitor, you will get the SynchronizationLockException exception with the message "Object synchronization method was called from an unsynchronized block of code."

Lock on a Reference Type, Not a Value Type

Despite the lock that only accepts reference types as a lock object, Enter accepts reference types and value types. Bear in mind that using value types as a lock object leads to automatic "boxing" (i.e. wrapping), then a reference type would be the ownership. Automatic boxing creates a new object for each invocation of Enter, so Exit attempts to find the lock for the box object but finds nothing and throws the mentioned exception. That leads to a leaked lock since the owner object never releases the Monitor.

The below codes show the point:

static int locker;

static void WriteToFile()
{
  Monitor.Enter(locker);
  try
  {
    ...
  }
  finally
  {
    Monitor.Exit(locker);
  }
}

If we box the locker then passed through the Enter the above exception never happens. For example:

static int locker;
object lockerObj = (object) locker;

static void WriteToFile()
{
  Monitor.Enter(lockerObj);
  try
  {
    ...
  }
  finally
  {
    Monitor.Exit(lockerObj);
  }
}

Monitor Sample

So far, we have learned concepts and fundamental principles of the Monitor. It is time to practice, so let's dive through a short sample.

The below code lunches ten tasks, each of which sleeps for 200 milliseconds and increments the value of the counter variable. The critical section enclosed by Enter and Exit methods so that Our program works well and displays the expected result on the screen.

class Example
    {
        private static object locker = new object();
        static void Main(string[] args)
        {
            int taskListLength = 10;
            int counter = 0;

            List<Task> tasks = new List<Task>(taskListLength);
            for (int i = 0; i < taskListLength; i++)
            {
                tasks.Add(Task.Run(() =>
                {
                    //Simulate some jobs
                    Thread.Sleep(200);

                    Monitor.Enter(locker);
                    try
                    {
                        //Critical section
                        counter += 1;
                    }
                    finally
                    {
                        Monitor.Exit(locker);
                    }
                }));
            }
            Task.WaitAll(tasks.ToArray());
            Console.WriteLine("The counter value is: {0}", counter);
        }
    }
    //The Result of the example is:
    //  The counter value is: 10

Monitor static methods

The below table contains static methods of the Monitor class with a short description.

Methods	Description
Enter, TryEnter	Acquires a lock for an object. It indicates the start point of the critical section.
Wait	Releases the lock on an object and blocks the current thread until it reacquires the lock.
Pulse, PulseAll	While a thread owns the lock for an object, no other thread can acquire that lock.
Exit	Releases the lock on an object. It indicates the endpoint of the critical section.

Conclusion

The lock statement is an easy way to bring thread safety to your code and allowing only one thread to synchronize access to a particular block of code. We see that the lock stems from Enter/Exit methods of the Monitor class. Also discussed best practices that help us to gain a deeper insight for moving toward thread safety.

Here is not the end of our story; in the next post, we will go through some practical samples and see how lock is used in conjunction with other Monitor methods for a more advanced form of thread coordination.

Next mission

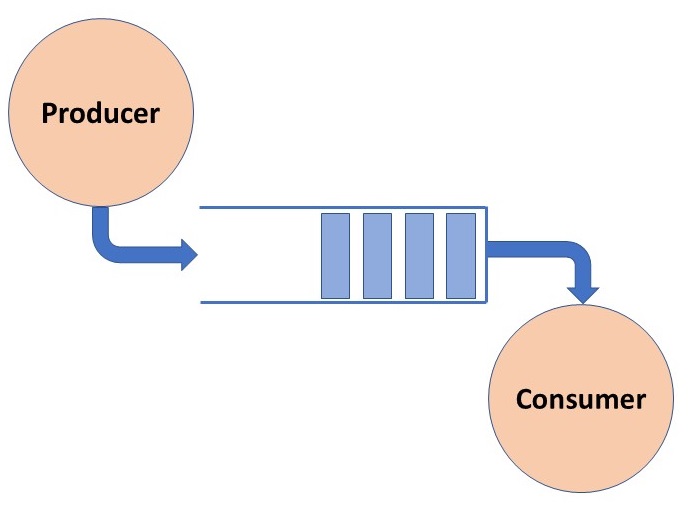

The post paves the way for the next mission in which we will dive into details of Wait, Pulse, and PulseAll then will implement a simple producer-consumer problem by the capabilities of Monitor static class.
